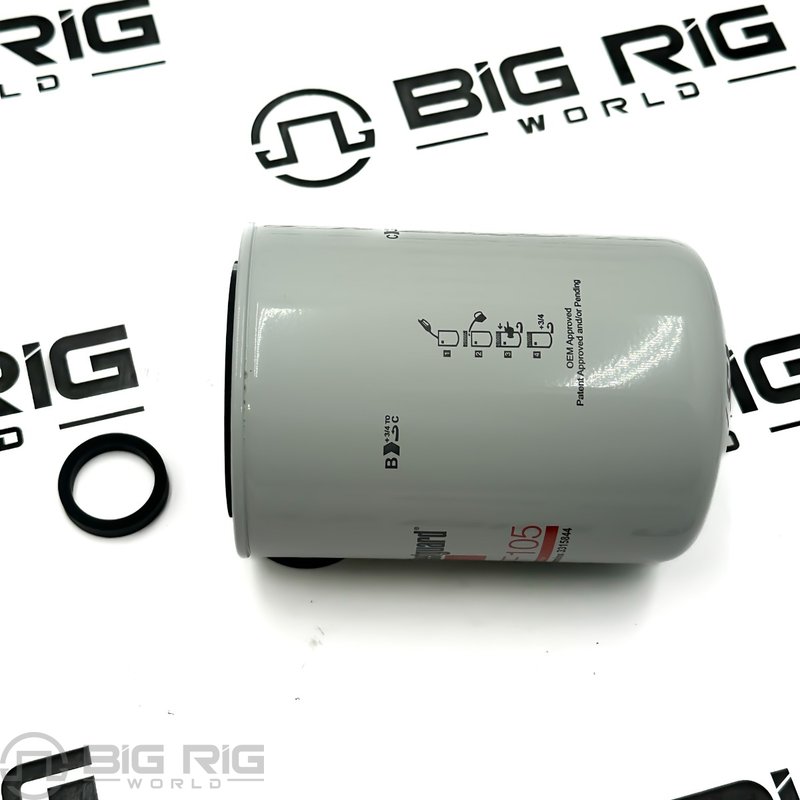

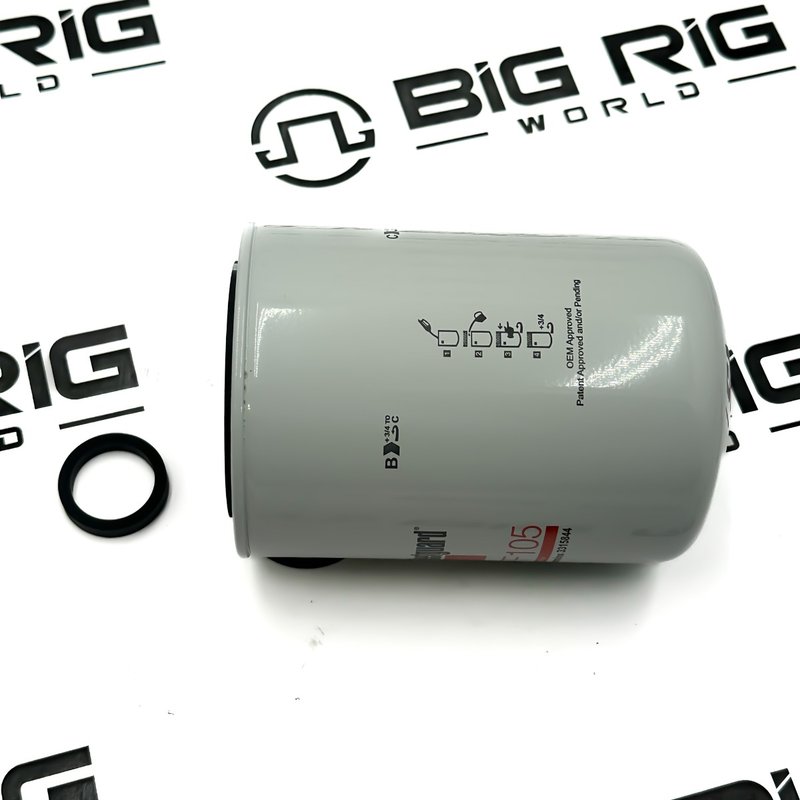

Spin-On Fuel Filter - FF105FLG

Spin-On Fuel Filter

Spin-On Fuel Filter

At Big Rig World we stock a full line of Genuine Fleetgaurd Filters for your Big Rig.

If you do not see your part listed on our site, contact us via e-mail or phone and we will find it for you.

Current Part#
Price: $6.82
Spin-On Fuel Filter - FF105FLG :


Overall Height 137.41 mm (5.41 in)
Largest OD 93.22 mm (3.67 in)
Seam OD 93.98 mm (3.7 in)
Gasket OD 71.88 mm (2.83 in)
GASKET INSIDE DIAMETER 62.48 mm (2.46 in)
Thread Size 1-14 UNS-2B
Standpipe NO
EFFICIENCY, TWA BY SAE J 1858 96 % (96 %)
EFFICIENCY, TWA BY SAE J 1985 96 % (96 %)
MICRON RATING BY SAE J 1858 20 micron (20 micron)
MICRON RATING BY SAE J 1985 20 micron (20 micron)
Primary Applications
CUMMINS 154709
Product Comments
  • Extended Life Version of FF104 w/o drain For Synthetic Media Version use FF5332
Uses Service Part
154711S FF105 with head
Upgrade Of
FF104 Extended Life Version
Is A Shorter Version Of
FF213 -
For Upgrade, Use
FF5332 -
FS1000 -
FS1015B Stratapore Version
Filter Used With
142784S Fuel filter head
212013S Dual fuel filter head
3930618S Fuel Filter Head, Steel insert
Additional Information
3301519 Gasket
